Home > PRODUCT > Tig Welding Torch > TORCH >

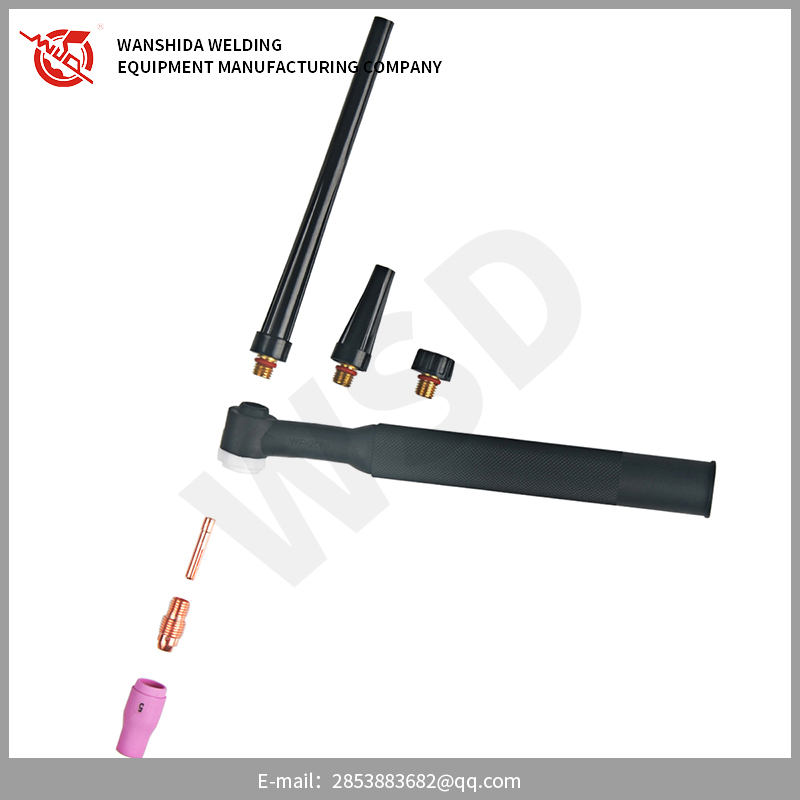

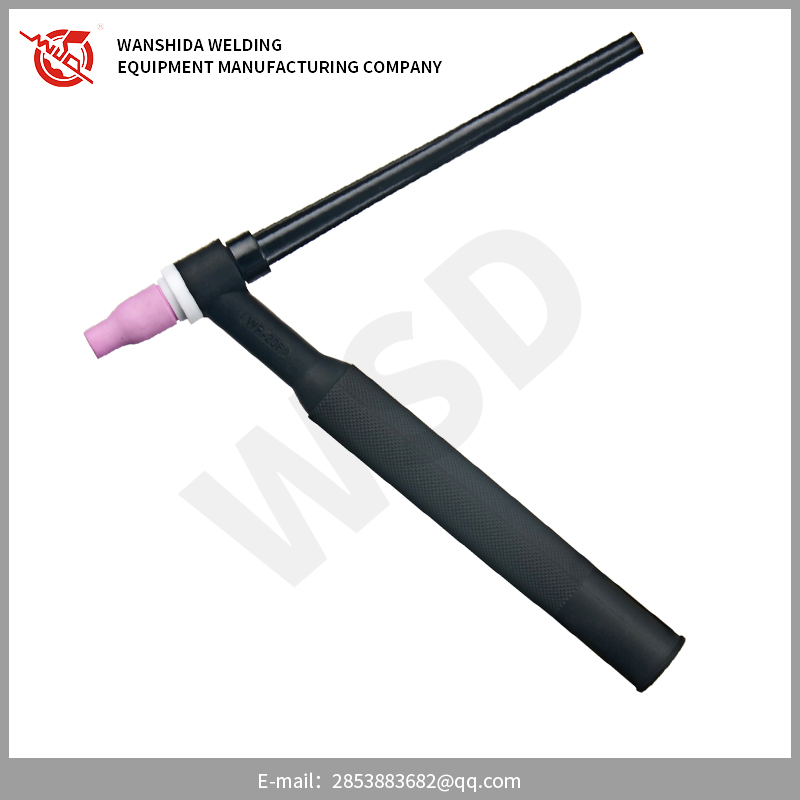

WP20
TIME：2020-08-22 14:05
LOADING IMAGES
Min.Order : 100
SupplyAbility : NULL
OEM : Available
Sample : Available
Port : Shanghai
Payment : MasterCard,VISA
Place of orign : CHINAWENZHOU
Customized : Customized
WeldingCable : 3M/5M/10M
Tips : Rating: 250A DC 175A AC Duty Cycle: 100% Tungsten Rod: 0.5-3.20mm

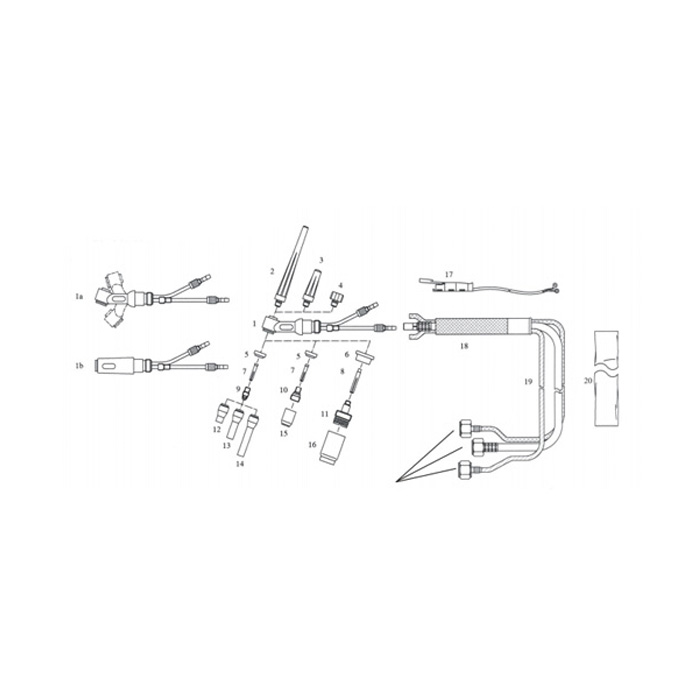

| No. | Description | Part No. |
| 1 | WP-20 Torch | WP-20(4M) |
| 1a | WP-20 Torch | WP-20(8M) |
| 1b | Torch Body | WP-20 |
| 2 | Torch Body (Flexible) | WP-20F |
| 3 | Torch Body(Pencil) | WP-20P |
| 4 | Long Back Cap | 41V24 |
| 5 | Medium Back Cap S | 41V35 |
| 6 | hort Back Cap | 41V33 |
| 7 | Gaske | 598882 |
| t Large Dia. Gas Lens Insulator | 54N63-20 | |
| Collet | 13N20.0.5mm | |
| 13N21,1.0mm | ||
| 13N22,1.6mm | ||
| 13N22M.2.0mm | ||
| 13N23,2.4mm | ||
| 13N24,3.2mm | ||
| 8 | Large Dia.Gas Lens Collet | 13N20L,0.5mm |
| 13N21L,1.0mm | ||
| 13N22L,1.6mm | ||
| 13N23L,2.4mm | ||
| 13N24L,3.2mm | ||
| 9 | Collet Body | 13N25,0.5mm |
| 13N26,1.0mm | ||
| 13N27.1.6mm | ||
| 13N27M.2.0mm | ||
| 13N28.2.4mm | ||
| 13N29,3.2mm | ||
| 10 | Small Gas Lens | 45V41,0.5mm |
| 45V42,1.0mm | ||
| 45V43,1.6mm | ||
| 45V43M.2.0mm | ||
| 45V44.2.4mm | ||
| 45V45,3.2mm | ||
| 11 | Large Stubby Gas Lens | 45V0204S,0.5/1.0mm |
| 45V116S,1.6mm | ||
| 45V64SS,2.4mm | ||
| 995795S,3.2mm | ||
| 13N08.6mm | ||
| 13N09,8mm | ||
| 13N10,10mm | ||
| 13N11.11mm | ||
| 13N12,13mm | ||
| 12 | Ceramic Nozzle | 13N13,16mm |
| 3NO9.8mm | ||
| 13N10,10mm | ||
| 13N11.11mm | ||
| 13N12,13mm | ||
| 13N13,16mm | ||
| 13 | Long Ceramic Nozzle | 796F70.5mm |
| 796F71,6mm | ||
| 796F72,8mm | ||
| 796F73,10mm | ||
| 14 | Extra Long Ceramic Nozzle | 796F74,5mm |
| 796F75.6mm | ||
| 796F76,8mm | ||
| 796F77,10mm | ||
| 53N58.6mm | ||
| 15 | Ceramic Nozzle | 53N59,8mm |
| 53N60,10mm | ||
| 53N61.11mm | ||
| 53N61S,13mm | ||
| 16 | Extra Dia.Ceramic Nozzle | 57N75,10mm |
| 57N74.13mm | ||
| 53N88,16mm | ||
| 53N87.19mm | ||
| 17 | Switch(with wire) | |
| 18 | Handle | 105Z55 |
| 19 | Cable Assembly | |
| 20 | Cable Assembly Cover |
The articles stated in the present catalogue are subjected to modifications or substitution without orior notice.The brand names and trade marks listed under which included in this cataloque are the registered trade marks of proper owner and remain exclusive property of the respetive owners. The parts shown in this cataloques are not genuine parts of the respective trade mark, they are interchangeable parts made to fit the griginal equioments. Alll the reperence codes are only for a convenient research.
