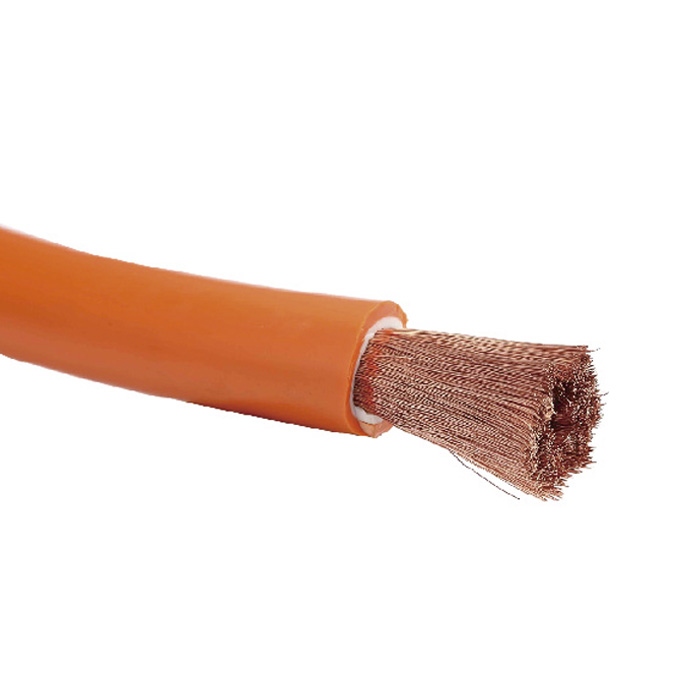

PVC WELDING CABLE

TIME:2020-08-24 15:53


LOADING IMAGES

Min.Order  :  100

SupplyAbility  :  NULL

OEM  :  Available

Sample  :  Available

Port  :  ShangHai

Payment  :  MasterCard,VISA

Place of orign  :  CHINA,WENZHOU

Customized  :  Customized

WeldingCable  :

Tips  :

Nominal  sections(mm²) coppers(mm) Thickness of sheath(mm) Average of o.d(mm) Max.conductor resistance @ 20℃(Ω/km) Nominal  weight  (kg/km)
No./dia. Min. Max.
16 513x0.20 2 9 11.5 1.21 240
25 798x0.20 2 10.5 13 0.78 350
35 1121 x0.20 2 11.5 14.5 0.554 450
50 1596x0.20 2.2 13.5 17 0.386 625
70 2220 x 0.20 2.4 15.5 19.5 0.272 825
95 3034 x 0.20 2.6 17 22 0.206 1125
120 1702x0.20 2.8 19 24 0.161 1380

The articles stated in the present catalogue are subjected to modifications or substitution without orior notice.The brand names and trade marks listed under which included in this cataloque are the registered trade marks of proper owner and remain exclusive property of the respetive owners. The parts shown in this cataloques are not genuine parts of the respective trade mark, they are interchangeable parts made to fit the griginal equioments. Alll the reperence codes are only for a convenient research.
