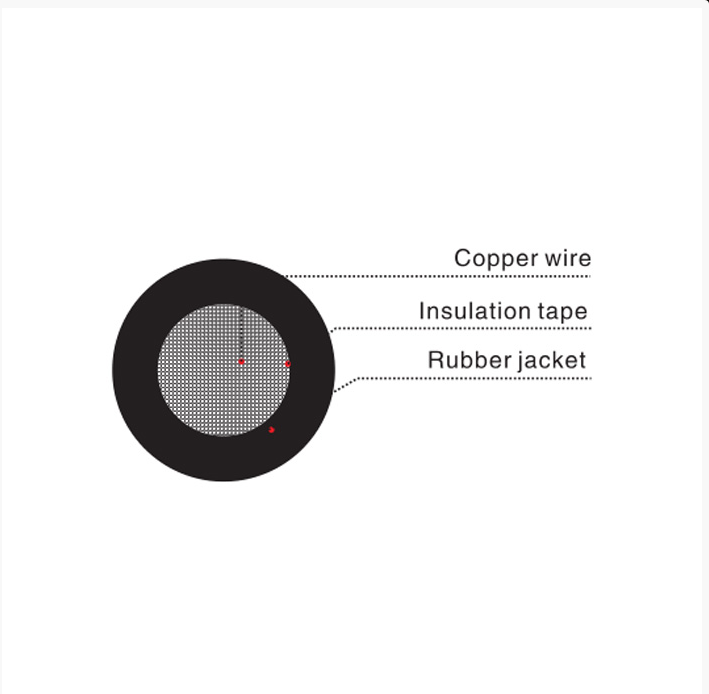

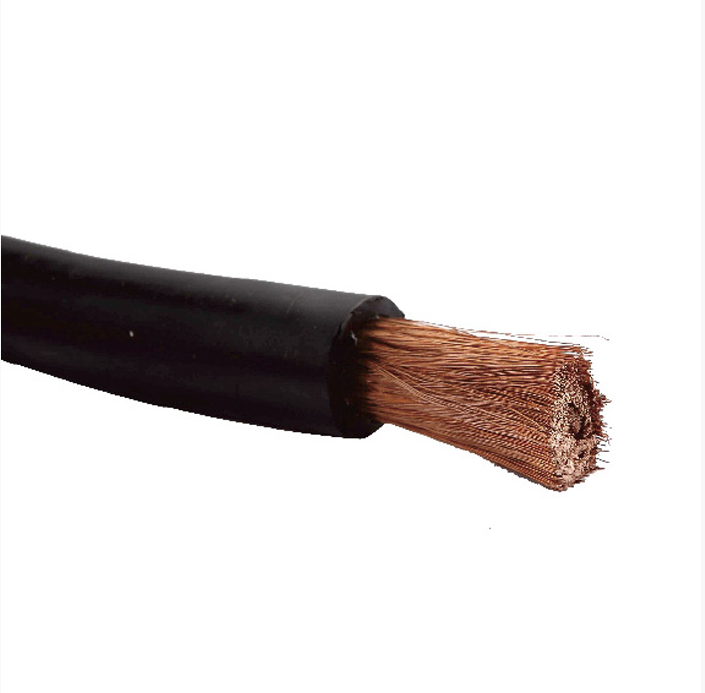

RUBBER WELDING CABLE

TIME:2020-08-19 21:41


LOADING IMAGES

Min.Order  :  100

SupplyAbility  :  NULL

OEM  :  Available

Sample  :  Available

Port  :  Shanghai

Payment  :  MasterCard,VISA

Place of orign  :  CHINAWENZHOU

Customized  :  Customized

WeldingCable  :  NULL

Tips  :  Standard: EN50525-2-81 Working temperature: -30℃-70℃ Available Rubber Jacket Colour:Black,Blue RedOrange

Nominal  sections(mm²) Dia.of  strands  max(mm) Thickness of sheath(mm) Average of O.D.(mm) Max.conductor resistance @20℃(Ω/km)
Min Max TC BC
10 0.21 2 7.7 9.7 1.95 1.91
16 0.21 2 8.8 11 1.24 1.21
25 0.21 2 10.1 12.7 0.795 0.78
35 0.21 2 11.4 14.2 0.565 0.554
50 0.21 2.2 13.2 16.5 0.393 0.386
70 0.21 2.4 15.3 19.2 0.277 0.272
95 0.21 2.6 17.1 21.4 0.21 0.206
120 0.21 2.8 19.2 24 0.164 0.161
150 0.21 3 21.1 26.4 0.132 0.129
185 0.21 3.2 23.1 28.9 0.108 0.106

The articles stated in the present catalogue are subjected to modifications or substitution without orior notice.The brand names and trade marks listed under which included in this cataloque are the registered trade marks of proper owner and remain exclusive property of the respetive owners. The parts shown in this cataloques are not genuine parts of the respective trade mark, they are interchangeable parts made to fit the griginal equioments. Alll the reperence codes are only for a convenient research.
